Digital Landscapes

Terrain Design Information & Speculative Trajectories of Natural Dynamic Processes | Workshop at the Tromsø Academy of Landscape and Territorial Studies | Image: Experimenting with Terrain Attributes and Transformational Parameters, Sceenshot: Marc Ihle

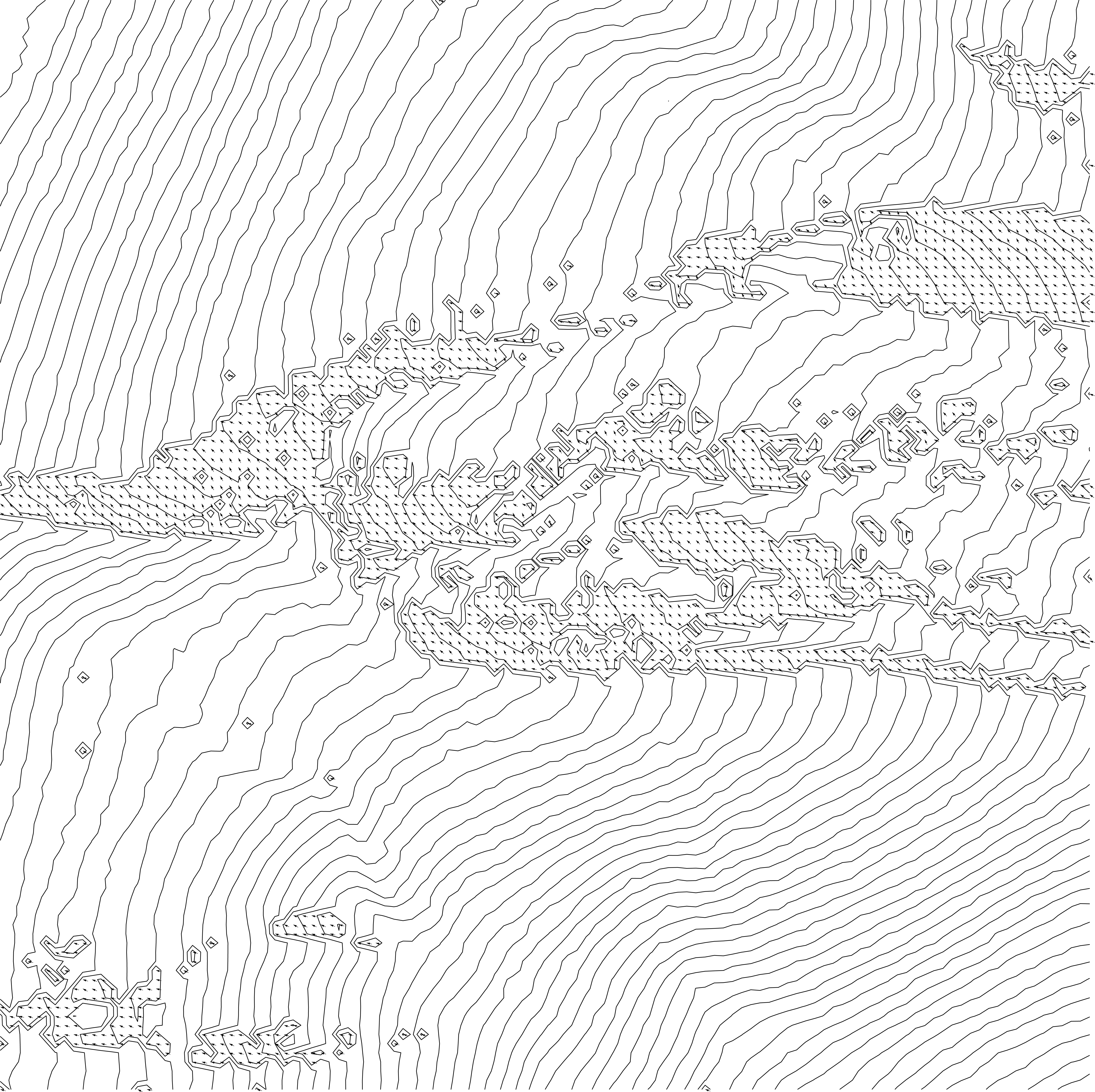

PART II of IV – ’Terrain Design Information & Speculative Trajectories of Natural Dynamic Processes’

Decoding Natural and Articficial Morphometric Features of Svalbard.

Parametric Data Mapping / GIS to CAD / 2d to 3d / Simple Protocols of Transformation, Rotation and Scale

Algorithmic thinking and the use of the visual programming language interface of Grasshopper3d to reinterpret Terrain & Material Conditions at the Mining Site of Svea on Spitzbergen, Svalbard

Creating a ‘Svalbard-TDIM’ (Terrain Design Information Model) for a specific Project/Geo-location & Territorial Extension; Clipping Data and extrapolating Terrain Attributes using SagaGIS and Terrain Analysis Modules; Creating an Attribute Table and storing calculated attributes to XY-coordinates/cells within a raster/grid/database; Exporting Geo-Data in different Formats to a CAD Import Folder Location; Creating of custom ‘3d-terrain-informed-planes’ orienting Geometry in normal direction to the terrain; decomposing a mesh; Accessing Attributes/Information such as: Solar Potential, Wind Exposition Index, Water Accumulation and Flow Direction Index, Topographic Wetness Index, Slope, Aspect, etc.; Calculating, filtering and applying of basic protocols of transformation, rotation and scale; Reconfiguration of the existing Digital Terrain Model through parametric interaction; altering the Terrain-Fabric, -Identity and -Conditions (DTM); Creation of a New Re-configured Database; Calculating and highlighting of differences of change with the Original Data; Understanding Terrainmodification as a tool to redirect dynamic trajectories of natural processes and thus transform Terrain not just in its physical 3 dimensional appereance but in its ability to accomodate different Properties.

Software: Rhinoceros3d & Grasshopper3d | Plug-ins and open source components: www.food4rhino.com | analysistools | kangaroo-physics | elk | ladybug-tools | meshedit | mesh | DTM-digital-terrain-mesh | tt-toolbox | geco | fabtools | elefront | ghexcel-interface-excel | lands-design | heron | quelea-agent-based-design-grasshopper | scatter | bison

Images/Screenshots:

Terrain Design Information & Speculative Trajectories of Natural Dynamic Processes | Workshop at the Tromsø Academy of Landscape and Territorial Studies | Image: Marc Ihle
Terrain Design Information & Speculative Trajectories of Natural Dynamic Processes | Workshop at the Tromsø Academy of Landscape and Territorial Studies | Image: Marc Ihle
Terrain Design Information & Speculative Trajectories of Natural Dynamic Processes | Workshop at the Tromsø Academy of Landscape and Territorial Studies - Part II | Image: Marc Ihle
Terrain Design Information & Speculative Trajectories of Natural Dynamic Processes | Workshop at the Tromsø Academy of Landscape and Territorial Studies – Part II | Image: Marc Ihle
  • Terrain Design Information & Speculative Trajectories of Natural Dynamic Processes | Workshop at the Tromsø Academy of Landscape and Territorial Studies | Image: Experimenting with Terrain Attributes and Transformational Parameters, Sceenshot: Marc Ihle
    Terrain Design Information & Speculative Trajectories of Natural Dynamic Processes | Workshop at the Tromsø Academy of Landscape and Territorial Studies | Image: Experimenting with Terrain Attributes and Transformational Parameters, Sceenshot: Marc Ihle
  • Terrain Design Information & Speculative Trajectories of Natural Dynamic Processes | Workshop at the Tromsø Academy of Landscape and Territorial Studies | Image: Experimenting with Terrain Attributes and Transformational Parameters, Sceenshot: Marc Ihle
    Terrain Design Information & Speculative Trajectories of Natural Dynamic Processes | Workshop at the Tromsø Academy of Landscape and Territorial Studies | Image: Experimenting with Terrain Attributes and Transformational Parameters, Sceenshot: Marc Ihle
  • Terrain Design Information & Speculative Trajectories of Natural Dynamic Processes | Workshop at the Tromsø Academy of Landscape and Territorial Studies | Image: Experimenting with Terrain Attributes and Transformational Parameters, Sceenshot: Marc Ihle
    Terrain Design Information & Speculative Trajectories of Natural Dynamic Processes | Workshop at the Tromsø Academy of Landscape and Territorial Studies | Image: Experimenting with Terrain Attributes and Transformational Parameters, Sceenshot: Marc Ihle

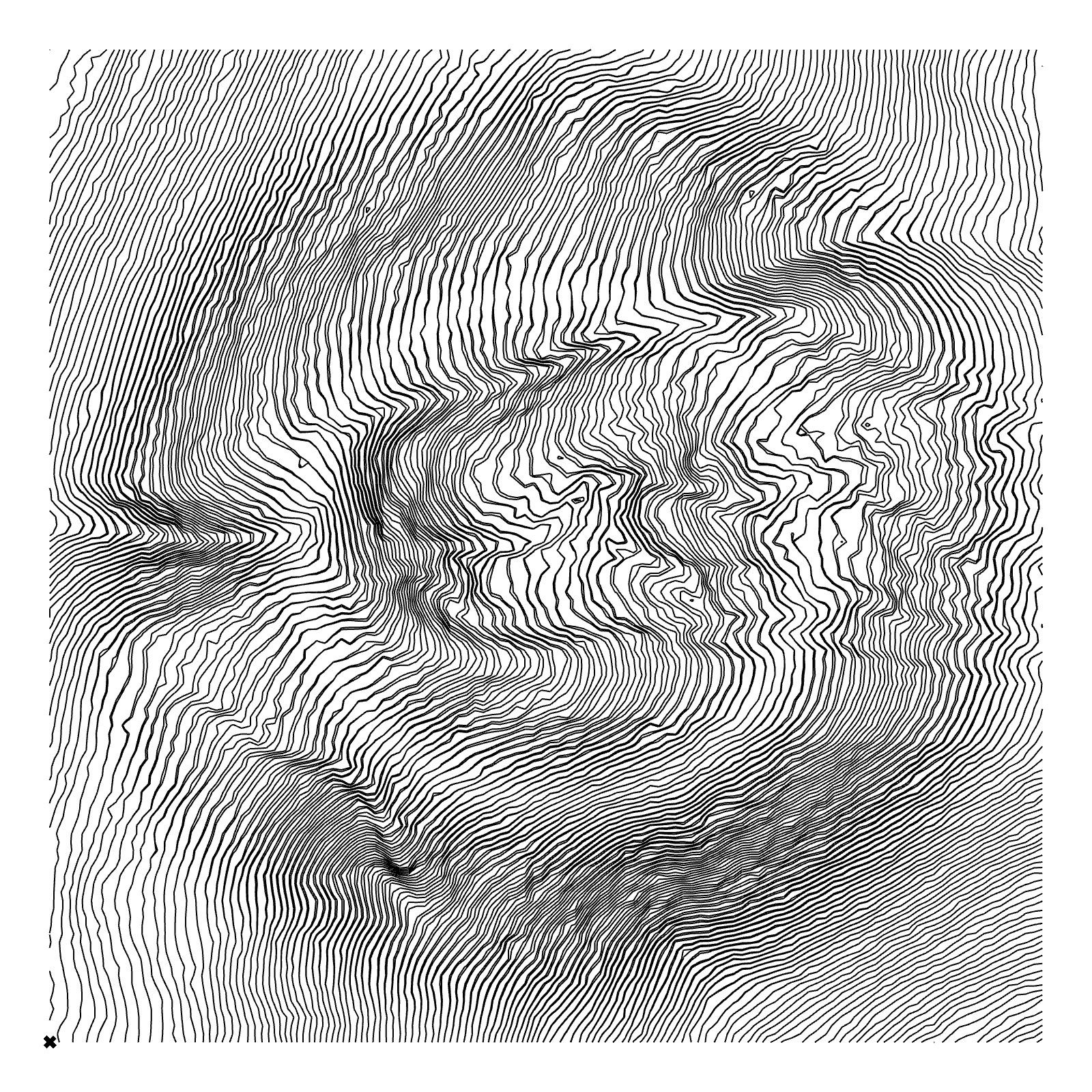

Altering A Digital Terrain Model

Natural-, Artificial- and Hybrid-Morphologies

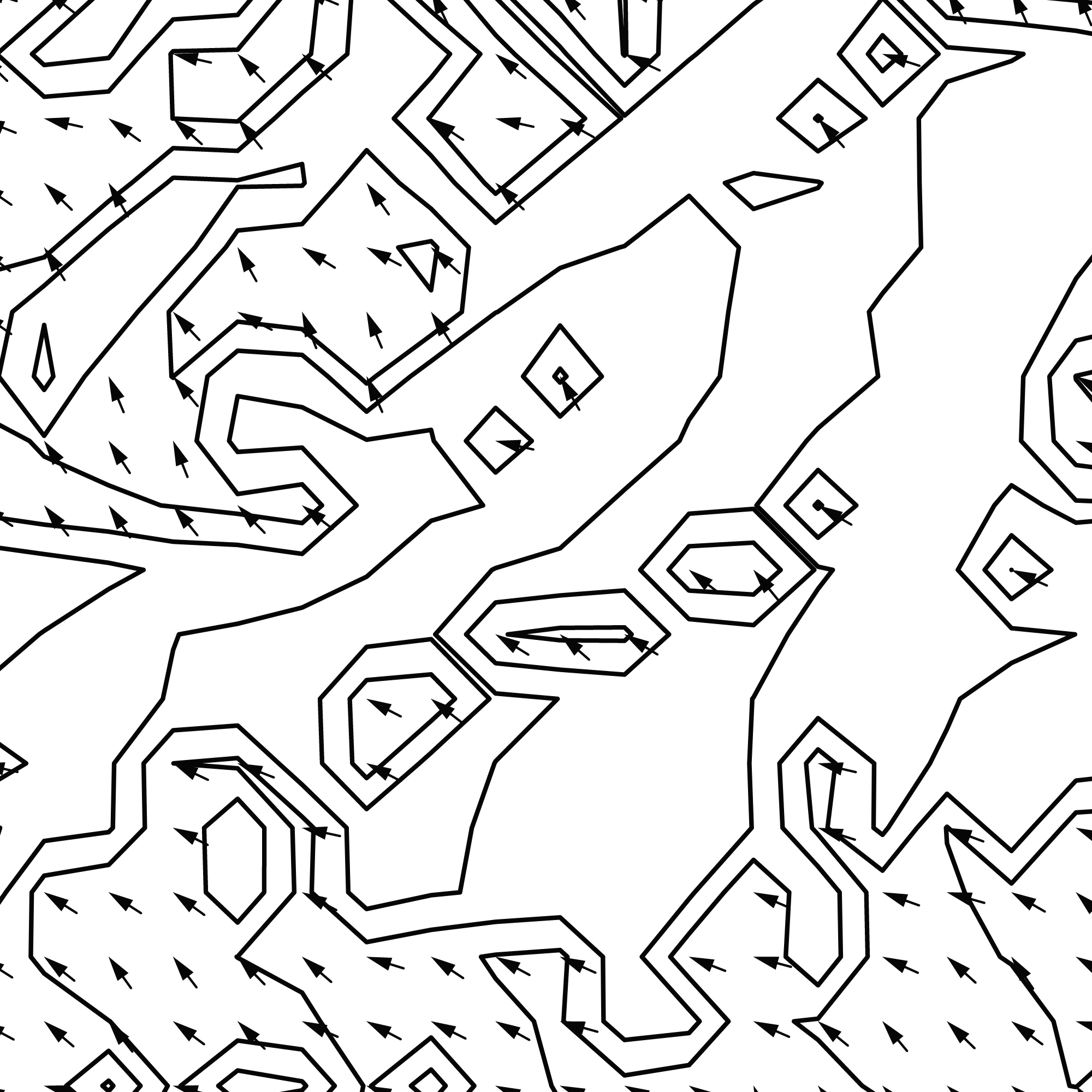

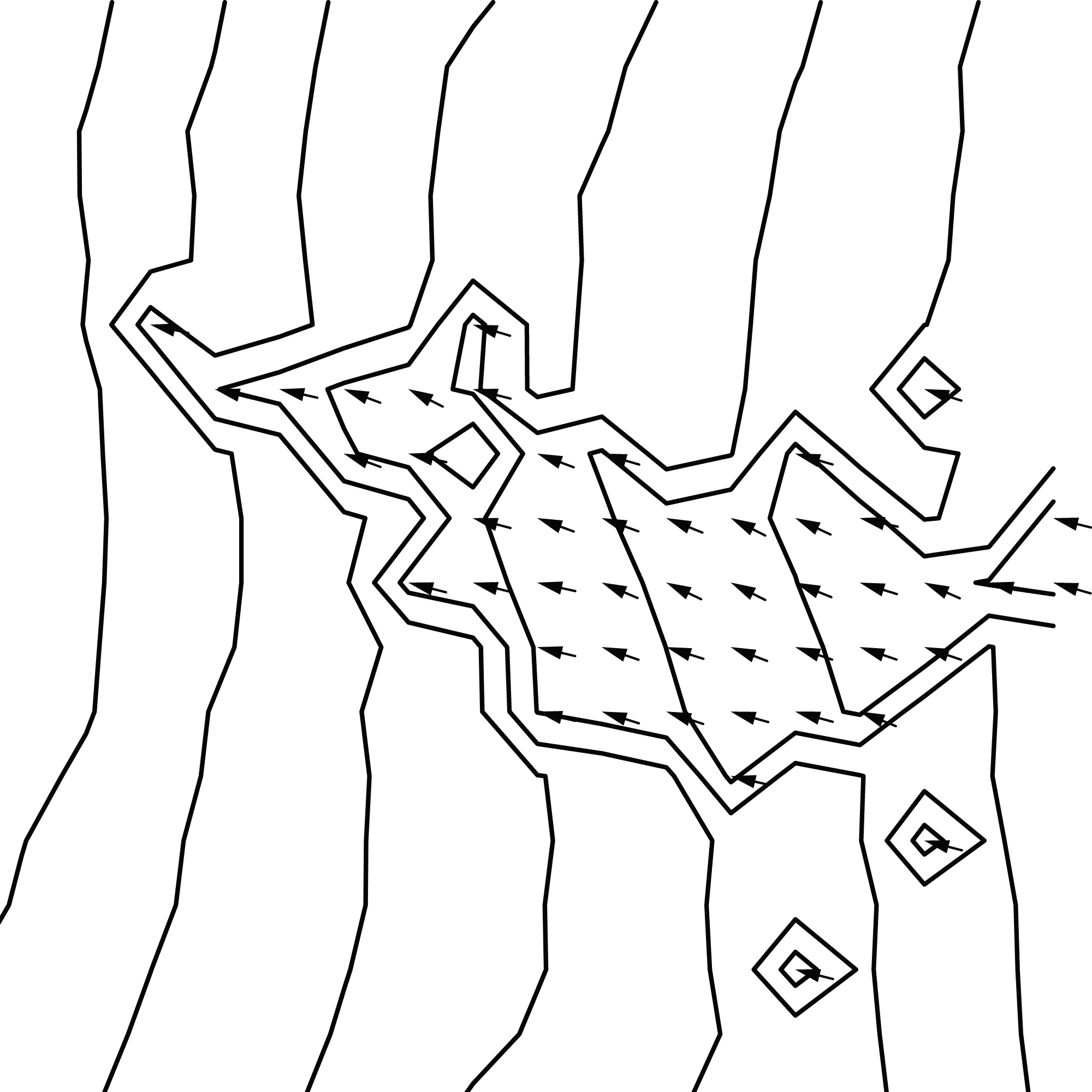

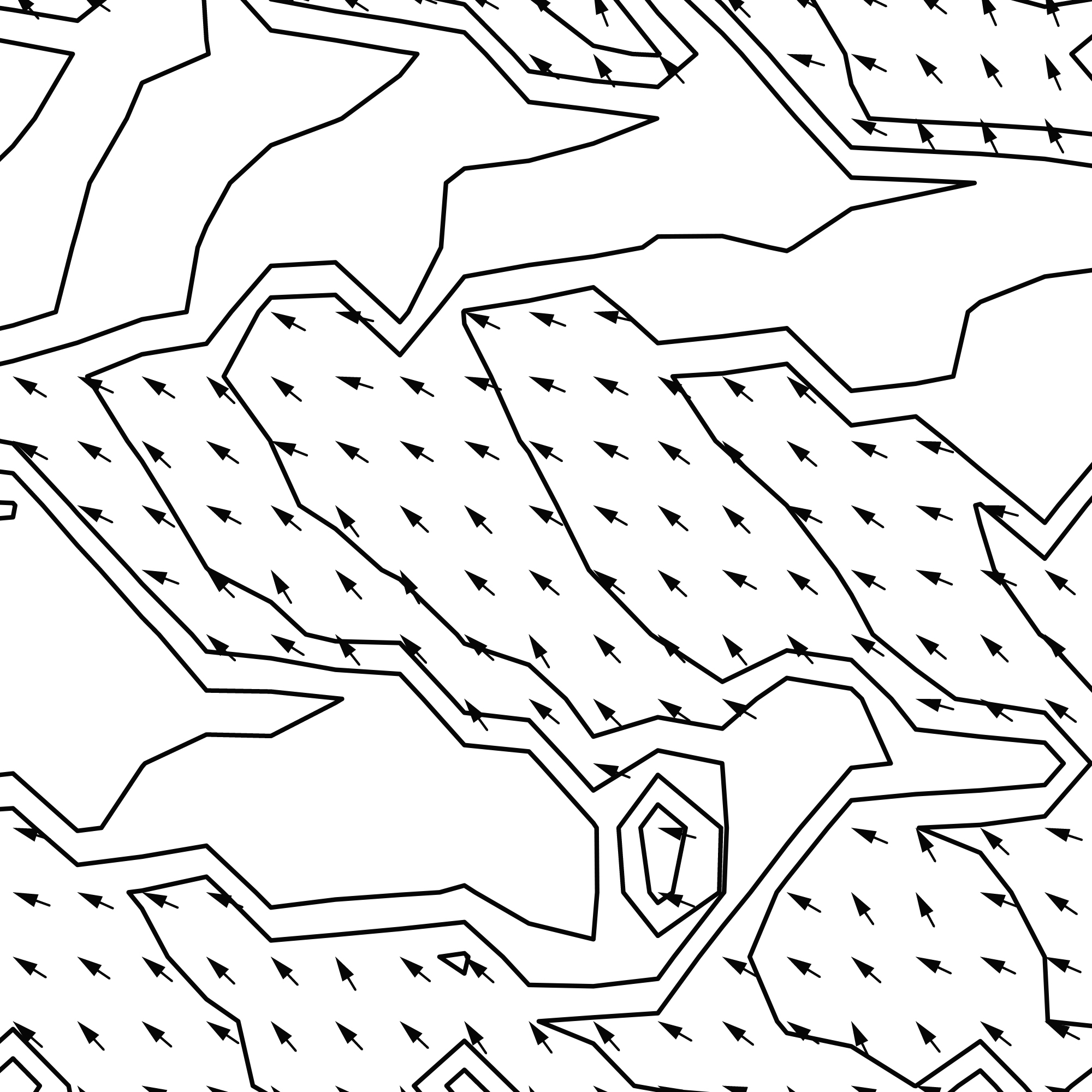

  • Terrain Design Information & Speculative Trajectories of Natural Dynamic Processes | Workshop at the Tromsø Academy of Landscape and Territorial Studies | Image: Experimenting with Terrain Attributes and Transformational Parameters, Sceenshot: Marc Ihle
    Terrain Design Information & Speculative Trajectories of Natural Dynamic Processes | Workshop at the Tromsø Academy of Landscape and Territorial Studies | Image: Experimenting with Terrain Attributes and Transformational Parameters, Sceenshot: Marc Ihle
  • Terrain Design Information & Speculative Trajectories of Natural Dynamic Processes | Workshop at the Tromsø Academy of Landscape and Territorial Studies | Image: Experimenting with Terrain Attributes and Transformational Parameters, Sceenshot: Marc Ihle
    Terrain Design Information & Speculative Trajectories of Natural Dynamic Processes | Workshop at the Tromsø Academy of Landscape and Territorial Studies | Image: Experimenting with Terrain Attributes and Transformational Parameters, Sceenshot: Marc Ihle
  • Terrain Design Information & Speculative Trajectories of Natural Dynamic Processes | Workshop at the Tromsø Academy of Landscape and Territorial Studies | Image: Experimenting with Terrain Attributes and Transformational Parameters, Sceenshot: Marc Ihle
    Terrain Design Information & Speculative Trajectories of Natural Dynamic Processes | Workshop at the Tromsø Academy of Landscape and Territorial Studies | Image: Experimenting with Terrain Attributes and Transformational Parameters, Sceenshot: Marc Ihle
  • Terrain Design Information & Speculative Trajectories of Natural Dynamic Processes | Workshop at the Tromsø Academy of Landscape and Territorial Studies | Image: Experimenting with Terrain Attributes and Transformational Parameters, Sceenshot: Marc Ihle
    Terrain Design Information & Speculative Trajectories of Natural Dynamic Processes | Workshop at the Tromsø Academy of Landscape and Territorial Studies | Image: Experimenting with Terrain Attributes and Transformational Parameters, Sceenshot: Marc Ihle
  • Terrain Design Information & Speculative Trajectories of Natural Dynamic Processes | Workshop at the Tromsø Academy of Landscape and Territorial Studies | Image: Experimenting with Terrain Attributes and Transformational Parameters, Sceenshot: Marc Ihle
    Terrain Design Information & Speculative Trajectories of Natural Dynamic Processes | Workshop at the Tromsø Academy of Landscape and Territorial Studies | Image: Experimenting with Terrain Attributes and Transformational Parameters, Sceenshot: Marc Ihle
  • Terrain Design Information & Speculative Trajectories of Natural Dynamic Processes | Workshop at the Tromsø Academy of Landscape and Territorial Studies | Image: Experimenting with Terrain Attributes and Transformational Parameters, Sceenshot: Marc Ihle
    Terrain Design Information & Speculative Trajectories of Natural Dynamic Processes | Workshop at the Tromsø Academy of Landscape and Territorial Studies | Image: Experimenting with Terrain Attributes and Transformational Parameters, Sceenshot: Marc Ihle
  • Terrain Design Information & Speculative Trajectories of Natural Dynamic Processes | Workshop at the Tromsø Academy of Landscape and Territorial Studies | Image: Experimenting with Terrain Attributes and Transformational Parameters, Sceenshot: Marc Ihle
    Terrain Design Information & Speculative Trajectories of Natural Dynamic Processes | Workshop at the Tromsø Academy of Landscape and Territorial Studies | Image: Experimenting with Terrain Attributes and Transformational Parameters, Sceenshot: Marc Ihle
  • Terrain Design Information & Speculative Trajectories of Natural Dynamic Processes | Workshop at the Tromsø Academy of Landscape and Territorial Studies | Image: Experimenting with Terrain Attributes and Transformational Parameters, Sceenshot: Marc Ihle
    Terrain Design Information & Speculative Trajectories of Natural Dynamic Processes | Workshop at the Tromsø Academy of Landscape and Territorial Studies | Image: Experimenting with Terrain Attributes and Transformational Parameters, Sceenshot: Marc Ihle
  • Terrain Design Information & Speculative Trajectories of Natural Dynamic Processes | Workshop at the Tromsø Academy of Landscape and Territorial Studies | Image: Experimenting with Terrain Attributes and Transformational Parameters, Sceenshot: Marc Ihle
    Terrain Design Information & Speculative Trajectories of Natural Dynamic Processes | Workshop at the Tromsø Academy of Landscape and Territorial Studies | Image: Experimenting with Terrain Attributes and Transformational Parameters, Sceenshot: Marc Ihle
  • Terrain Design Information & Speculative Trajectories of Natural Dynamic Processes | Workshop at the Tromsø Academy of Landscape and Territorial Studies | Image: Experimenting with Terrain Attributes and Transformational Parameters, Sceenshot: Marc Ihle
    Terrain Design Information & Speculative Trajectories of Natural Dynamic Processes | Workshop at the Tromsø Academy of Landscape and Territorial Studies | Image: Experimenting with Terrain Attributes and Transformational Parameters, Sceenshot: Marc Ihle
  • Terrain Design Information & Speculative Trajectories of Natural Dynamic Processes | Workshop at the Tromsø Academy of Landscape and Territorial Studies | Image: Experimenting with Terrain Attributes and Transformational Parameters, Sceenshot: Marc Ihle
    Terrain Design Information & Speculative Trajectories of Natural Dynamic Processes | Workshop at the Tromsø Academy of Landscape and Territorial Studies | Image: Experimenting with Terrain Attributes and Transformational Parameters, Sceenshot: Marc Ihle
  • Terrain Design Information & Speculative Trajectories of Natural Dynamic Processes | Workshop at the Tromsø Academy of Landscape and Territorial Studies | Image: Experimenting with Terrain Attributes and Transformational Parameters, Sceenshot: Marc Ihle
    Terrain Design Information & Speculative Trajectories of Natural Dynamic Processes | Workshop at the Tromsø Academy of Landscape and Territorial Studies | Image: Experimenting with Terrain Attributes and Transformational Parameters, Sceenshot: Marc Ihle

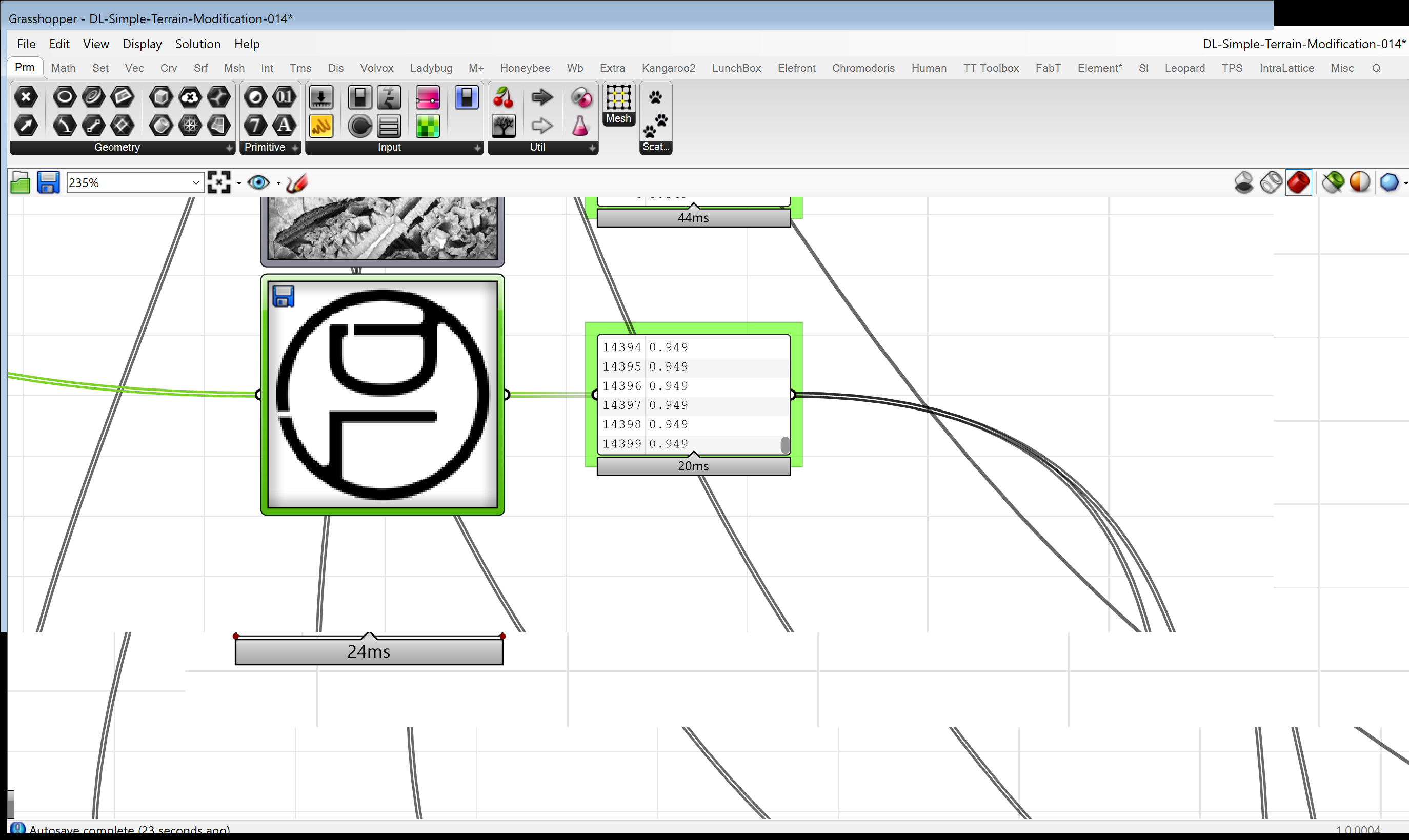

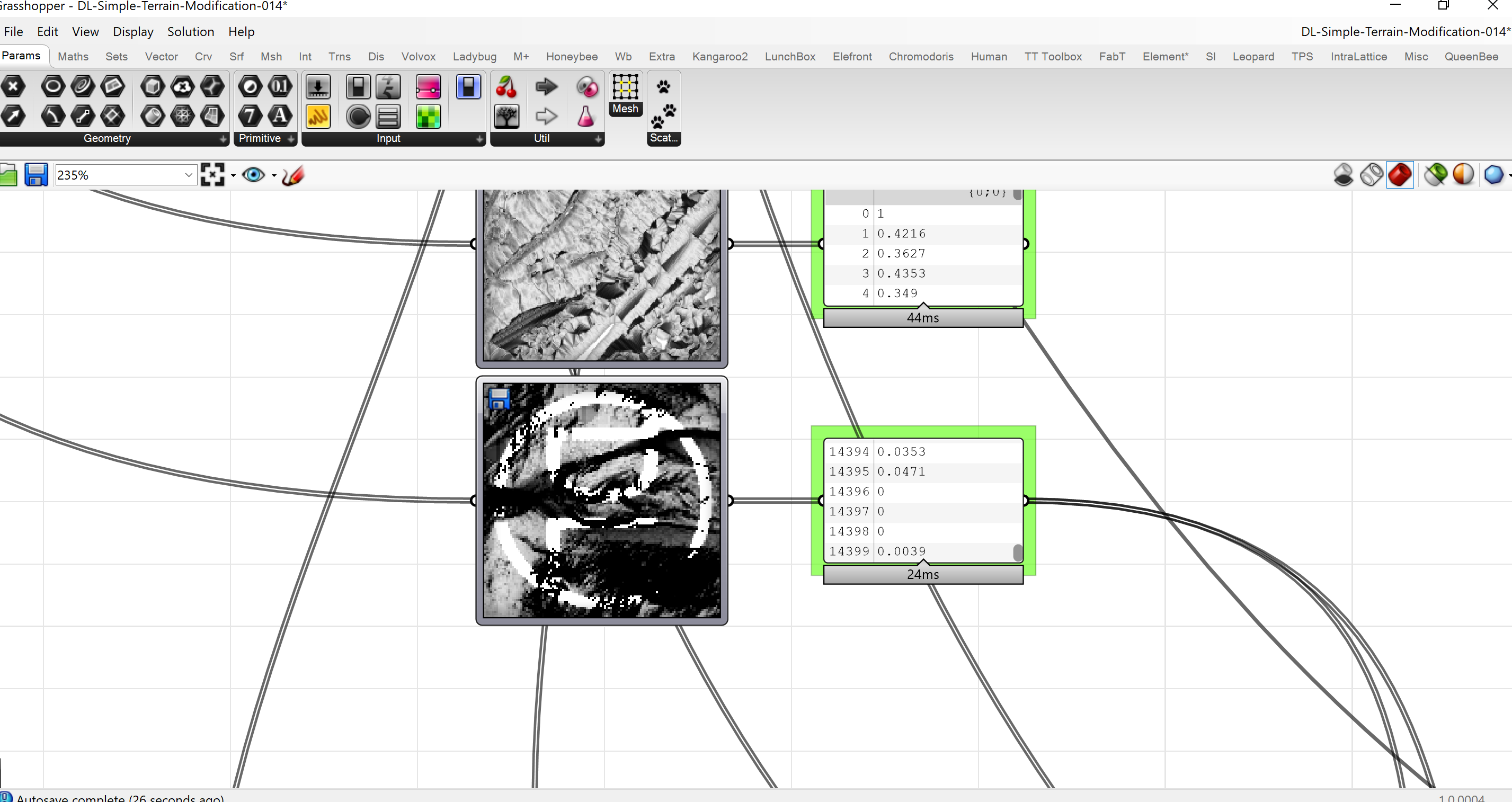

Download: DL-Simple-Terrain-Modification

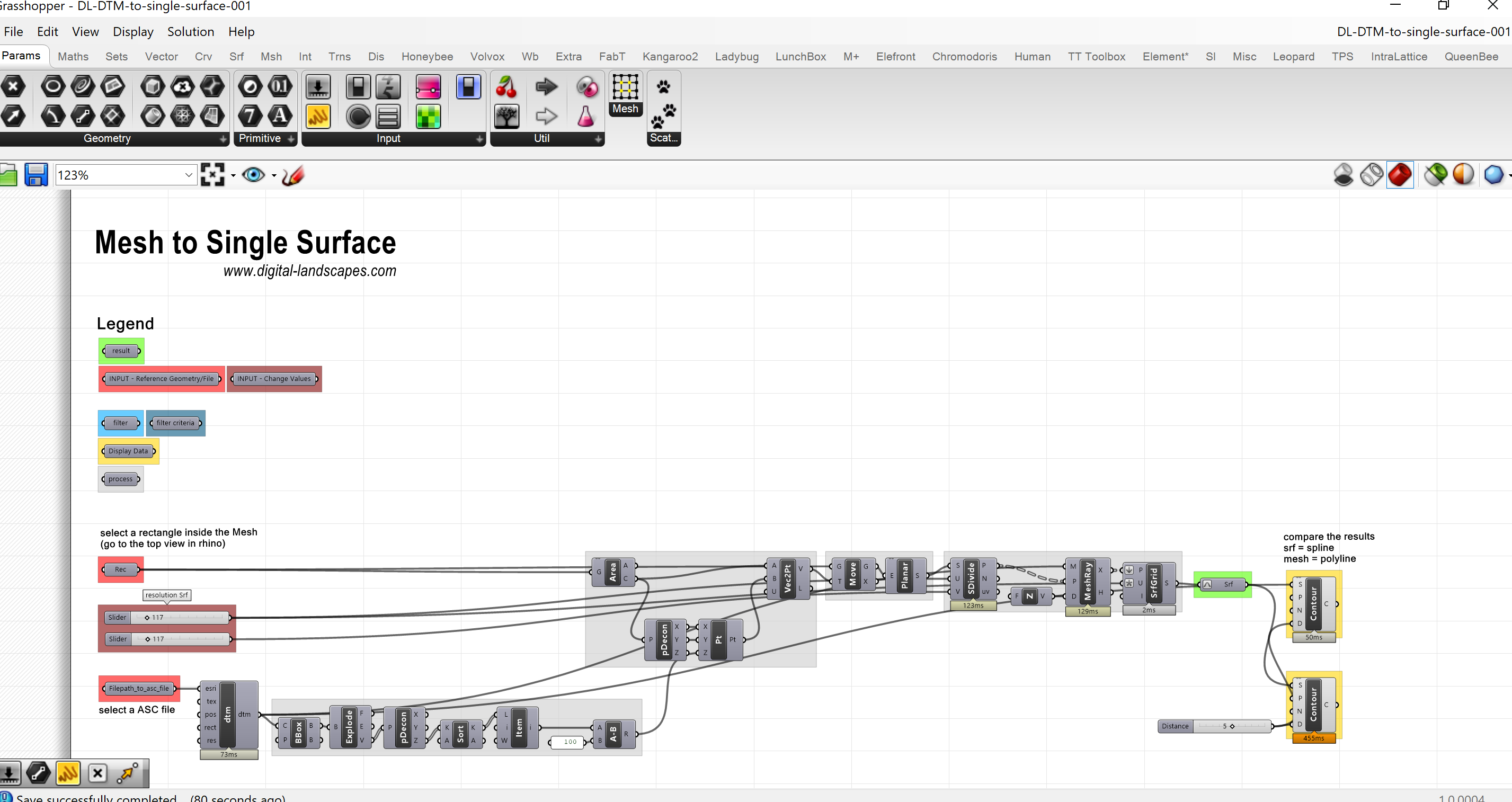

Download: DL-Mesh-to-Single-Surface

Download: DL-Waterflow-on-Single-Surface

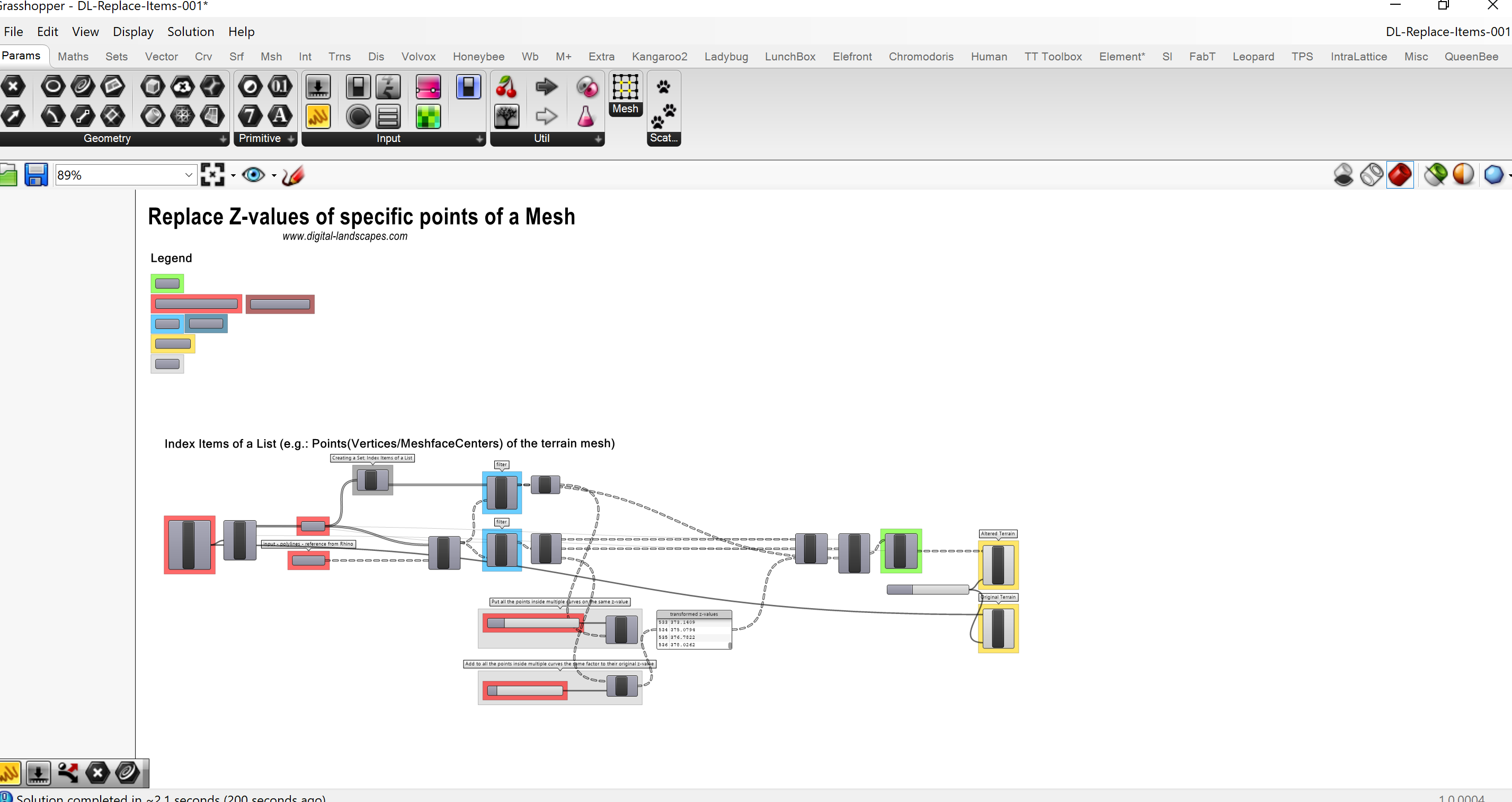

Download: DL-Replace-Items

Download: DL-Mesh-From-Contours

Download: DL-Multiple-Attractor-Curves

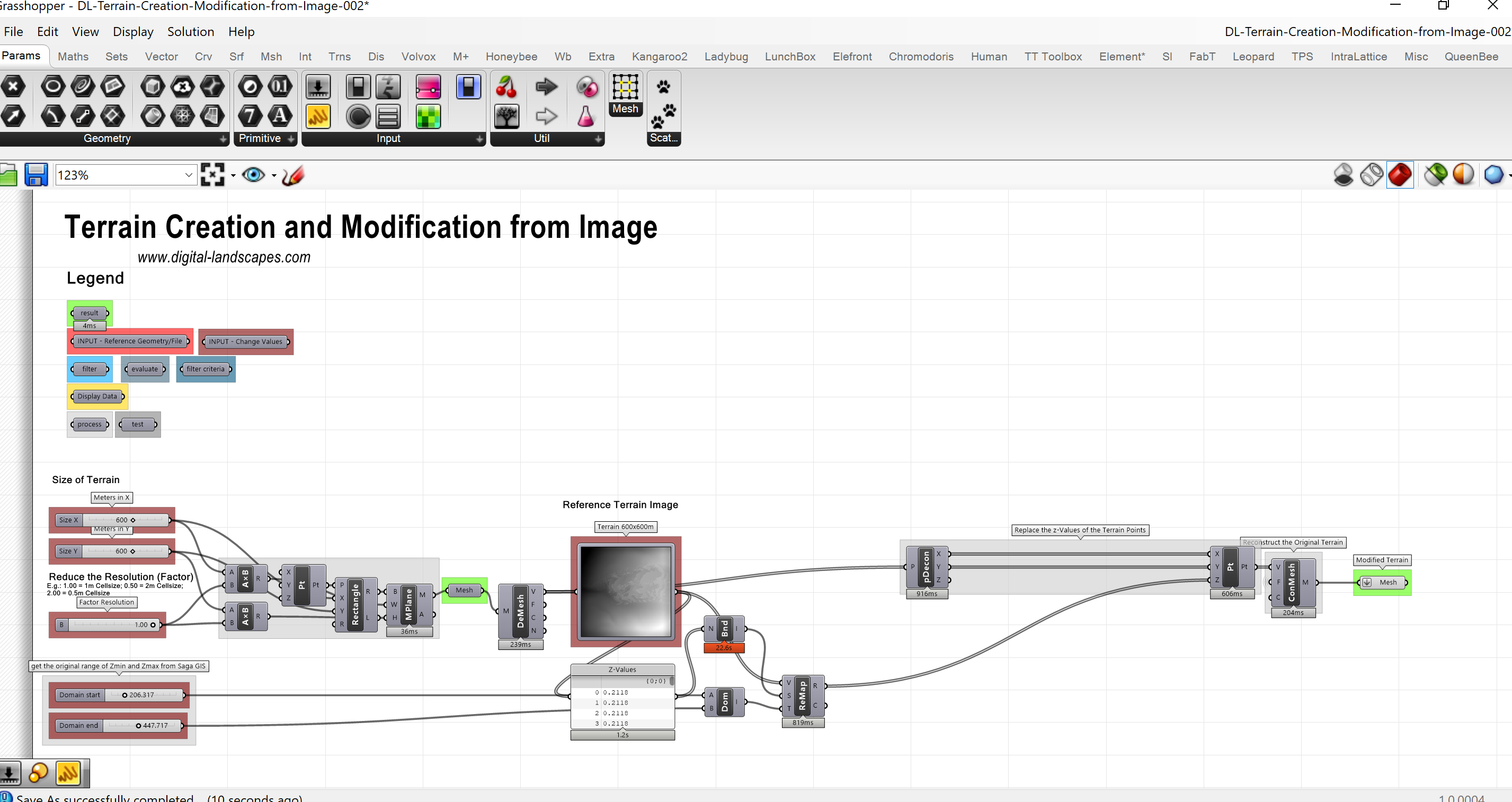

Download: Terrain Creation and Modification from Image

Terrain Design Information & Speculative Trajectories of Natural Dynamic Processes | Workshop at the Tromsø Academy of Landscape and Territorial Studies | Image: Marc Ihle
Terrain Design Information & Speculative Trajectories of Natural Dynamic Processes | Workshop at the Tromsø Academy of Landscape and Territorial Studies | Image: Marc Ihle
https://we.tl/t-DcdR24LUpq
Terrain Design Information & Speculative Trajectories of Natural Dynamic Processes | Workshop at the Tromsø Academy of Landscape and Territorial Studies | Image: Marc Ihle
Terrain Design Information & Speculative Trajectories of Natural Dynamic Processes | Workshop at the Tromsø Academy of Landscape and Territorial Studies | Image: Marc Ihle

FABRICATION

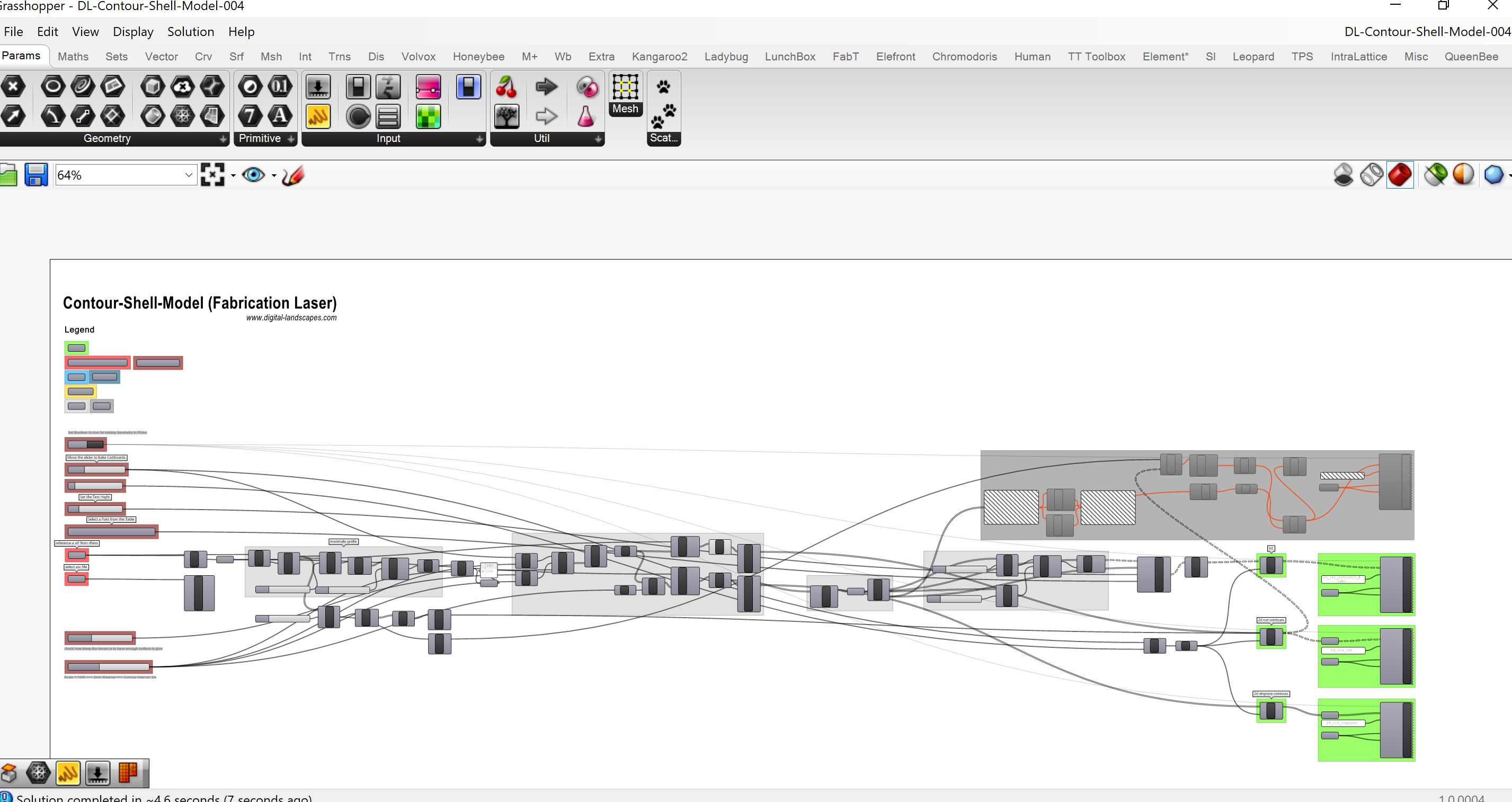

Download: DL-Contour-Shell-Model

Download: DL-Model-Cross-Section
